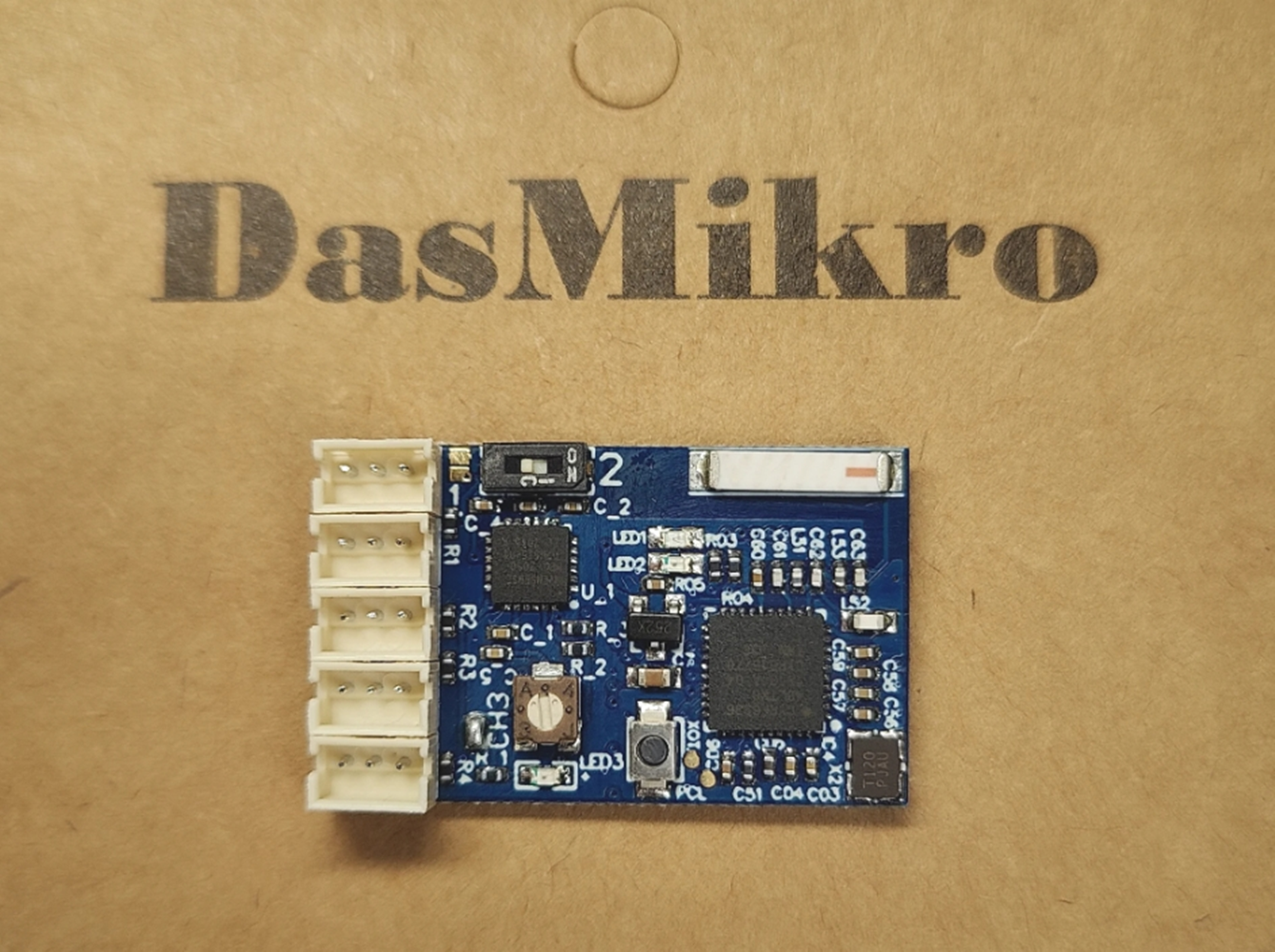

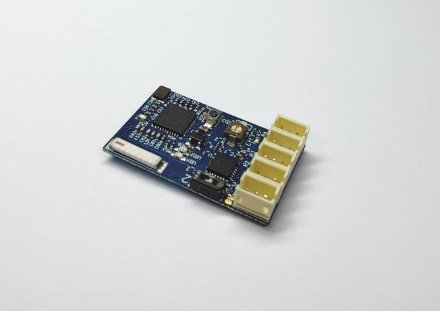

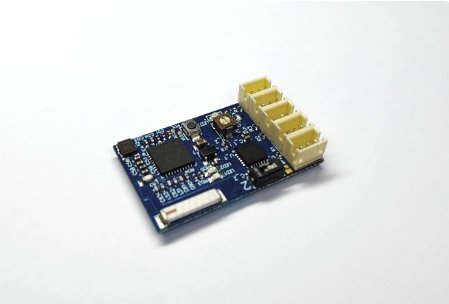

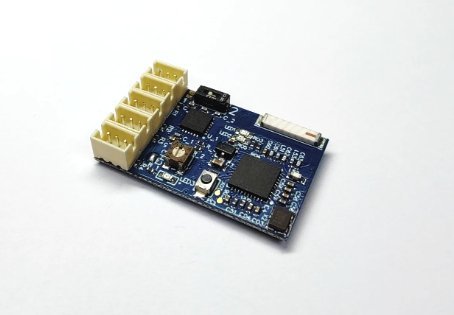

DASMIKRO SANWA NANO ANTENNA-FREE 4CH GYRO RECEIVER FH-4 FH-3 DSK-141

Description:

This RC receiver unit is Sanwa FHSS-4 and FHSS-3 compatible. It offers full 4-channel support in ultra-light weight and micro size and it is integrated a YOKOMO GRYO system.

Features:

1. Sanwa 2.4GHz FH3/FH4 Selectable Via Transmitter

2. High performance CPU enhance precision control feeling

3. 4 channel support

4. YOKOMO GYRO system integrated

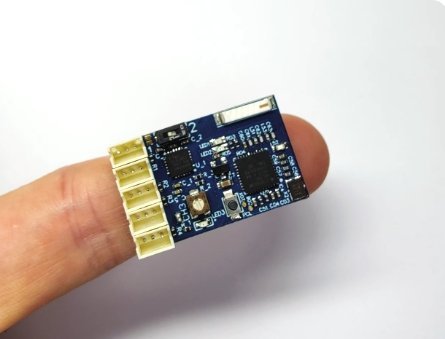

5. Micro size (36x15x7mm)

6. Added failsafe function

7. Operating Voltage 4.2V – 7.4V:

8. Weight: 3g

Compatible Transmitters:

Sanwa M17

Sanwa M12S

Sanwa M12

Sanwa MT44

Sanwa MT4S

Sanwa M11X

Sanwa MT-S

Package Included:

1 x Receiver

4 x 1.5mm 3P JST plug with high quality silicon cable

Wire Connection：

Binding procedure:

Step1. Select FH-4 or FH-3 protocol on transmitter and switch to bind page.

Step2. Press setup(bind) button then power on the receiver, after powered on release setup(bind) button. The receiver should enter the binding mode for 10 seconds(the led will slowly flash for 10 seconds).

Step3. Operate ‘bind’ operation on transmitter while the receiver led is slowly flashing.

Step4. If you did not make the ‘bind’ operation on transmitter in 10 seconds(receiver led slowly flashing), go back to Setp2 and do it again.

Step5. After binding please power off the receiver and transmitter then power them on to confirm they are bond.

Instruction:

CH1 GYRO: Connect steering servo with GYRO function

CH1: Connect steering servo without GYRO function

CH2: Normal servo signal output

CH3: Normal servo signal output

CH4: Normal servo signal output

PAIR: Pair receiver with transmitter

SP1: Digital or analog servo select, solder point connected is digital servo, solder point not connected is analog servo

SP2: Set forward or reverse of CH1 GYRO output signal

SP3: Transmitter channel 3 control adjust GYRO sensitivity select, solder point connected is Transmitter channel 3 control GYRO sensitivity, solder point not connected is VR control GYRO sensitivity

VR: When SP3 solder point connected, VR adjust servo output range; When SP3 solder point not connected, VR adjust GYRO sensitivity and servo output range is 100%

GRYO STATUS LED: When power it on, fast blink means initializing gyroscope midpoint and the remote control direction midpoint. Don’t move the gyroscope or change the remote control direction. If LED stops blinking and constantly light after initialization, means receiving CH3 signal, sensitivity is set by remote control CH3, the VR can adjust the range that the servo output, clockwise up. If LED blinks slowly when initialization completed, means no CH3 signal received, the sensitivity is set by potentiometer, clockwise shows the maximum, the servo is at the maximum range meantime.
