DasMikro 1S6A Micro Bi-Directional Brushed ESC With Front/Rear Light control Without Brake

DasMikro 1S6A Micro Bi-Directional Brushed ESC With Front/Rear Light control

Description:

This Brushed ESC module is designed for RC micro indoor racing chassis DIY. It could be used to transfer micro racing chassis to standalone receiver. Like Mini-Z Lit, Dnano, Epoch 1/43, HPI RS32 and many 1/32 or 1/43 aftermarket chassis. It has with brake version and without brake version for choice.

Features:

Net Weight: 2g

Operating Voltage: 3.7V – 5V

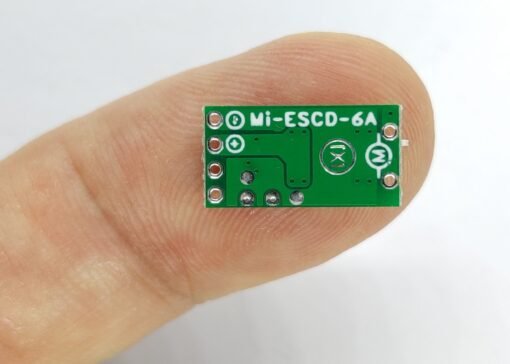

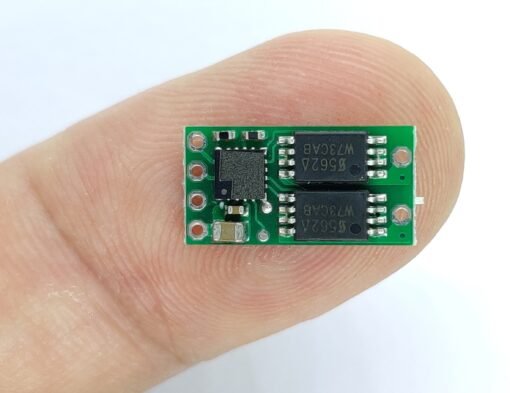

Size: 14mm x 7mm x 2mm

Current: 6A Maximum

Function:

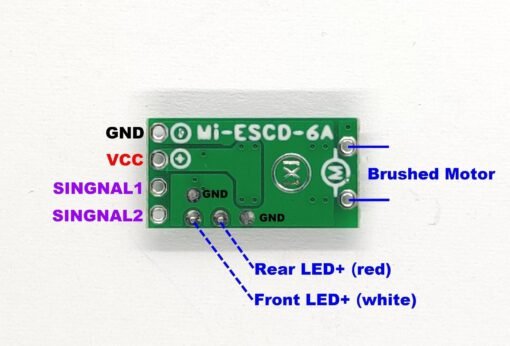

Signal1 is receiver throttle channel. It is used to control the speed the brushed motor.

Signal2 could be any channel from the receiver, it would be better it is a 3 position channel.

When signal2 is at low position, both front led and rear led are off.

When signal2 is at middle position, front led is low light on and rear led is on.

When signal2 is at high position, front led is high light on and rear led is on.

Package Included:

1 x 1S6A ESC
