DASMIKRO DSK-241N KO PROPO FHSS COMPATIBLE ANTENNA-FREE RECEIVER FOR KO PROPO EX-RR EX-2 EX-1 FHSS

DasMikro KO PROPO FHSS Compatible 4CH Antenna-free Surface Receiver

Description:

The DasMikro DSK-241N 2.4GHz 4-Channel KO PROPO FHSS Receiver uses a built-in antenna with exceptional range and response time. With a lightweight design and a small footprint, this receiver is great for 1/10 and 1/12 scale electric RC cars. Package includes one receiver and one bind plug.

Features:

1. KO PROPO FHSS System compatible
2. Super response
3. Micro size (18.2×20.2×27.4mm)
4. Operating Voltage 3.5V – 8.4V
5. Weight: 5g

Compatible Transmitters:

KO PROPO EX-RR

KO PROPO EX-2

KO PROPO EX-1 FHSS

RF-903FH

RF-904FH

Package Included:

1 x Receiver

1 x Bind cable

Bind

To ensure good signal strength, make sure the receiver antenna is as far away from any metal parts when installing the receiver.

1. Insert the binding cable into the receiver’s BIND port.
2. Plug the power cable into any other port, and the receiver’s LED will start to flash quickly indicating that it has entered bind mode.
3. Put the transmitter into bind mode; (See the transmitter’s instruction manual for more information.)
4. Binding is successful when the receiver’s LED starts to flash slowly. Remove the power and bind cables from the receiver *if the transmitter is bidirectional the reciever status indicator will not fash slowly.
5. Reconnect the power cable to the receiver.
6. Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again.

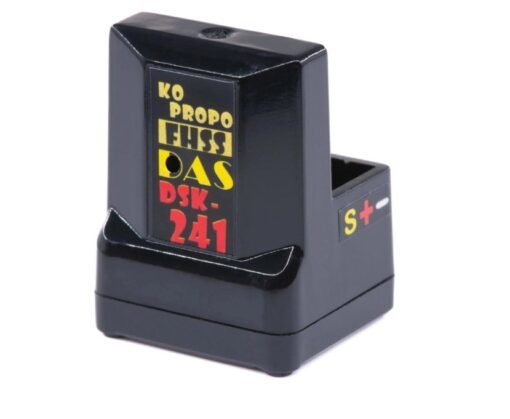

Pictures:
