DASMIKRO DSK-314N FUTABA T-FHSS SUPER RESPONSE ANTENNA-FREE 4CH RECEIVER V3 FOR FUTABA 10PX 7PX 4PX 4PM 4PV 3PV 4PLS 7XC 4GRS

THIS IS DASMIKRO FUTABA T-FHSS ANTENNA-FREE RECEIVER VERSION 3

Transmitter support:

FUTABA 10PX

FUTABA 7PX

FUTABA 4PX

FUTABA 7XC

FUTABA 4GRS

FUTABA 4PV

FUTABA 4PM

FUTABA 4PLS

FUTABA 3PV

Features:

1. Futaba 2.4GHz T-FHSS compatible

2. High performance CPU enhance precision control feeling

3. 4 channel support

4. Micro size (25.5x22x17.3 mm)

5. Ideal for any micro RC racing chassis

6. Added failsafe function

7. Operating Voltage 3.7V – 8.4V:

8. Weight: 5g

Package Included:

1 x Receiver

1 x Bind cable

Link Procedure:

Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.

1-Pull out the bind cable. Make sure the bind cable is not on the receiver.

2-Place the transmitter and the receiver close to each other within half (0.5) meter.

3-Place the transmitter into the linking mode and turn on the receiver

4-During countdown, plug in the bind cable between ‘BIND’ and ‘CH4’ for approximately 2 to 3 seconds and then unplug the bind cable. The LED will begin to blink red. After the receiver LED switches from blinking red to green – red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was succeeded. Actually check servo operation.

Normal mode / High Speed mode:

The ” Normal mode ” accepts any type of servos or the peripheral. The “High Speed mode” only accepts the digital servos, including BLS series, and most peripheral equipment such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitter manual in order to have a pleasant running experience.

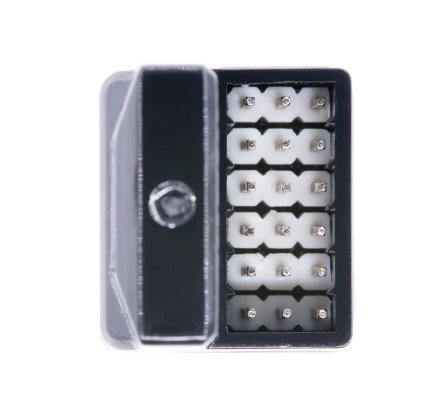

Pictures:
