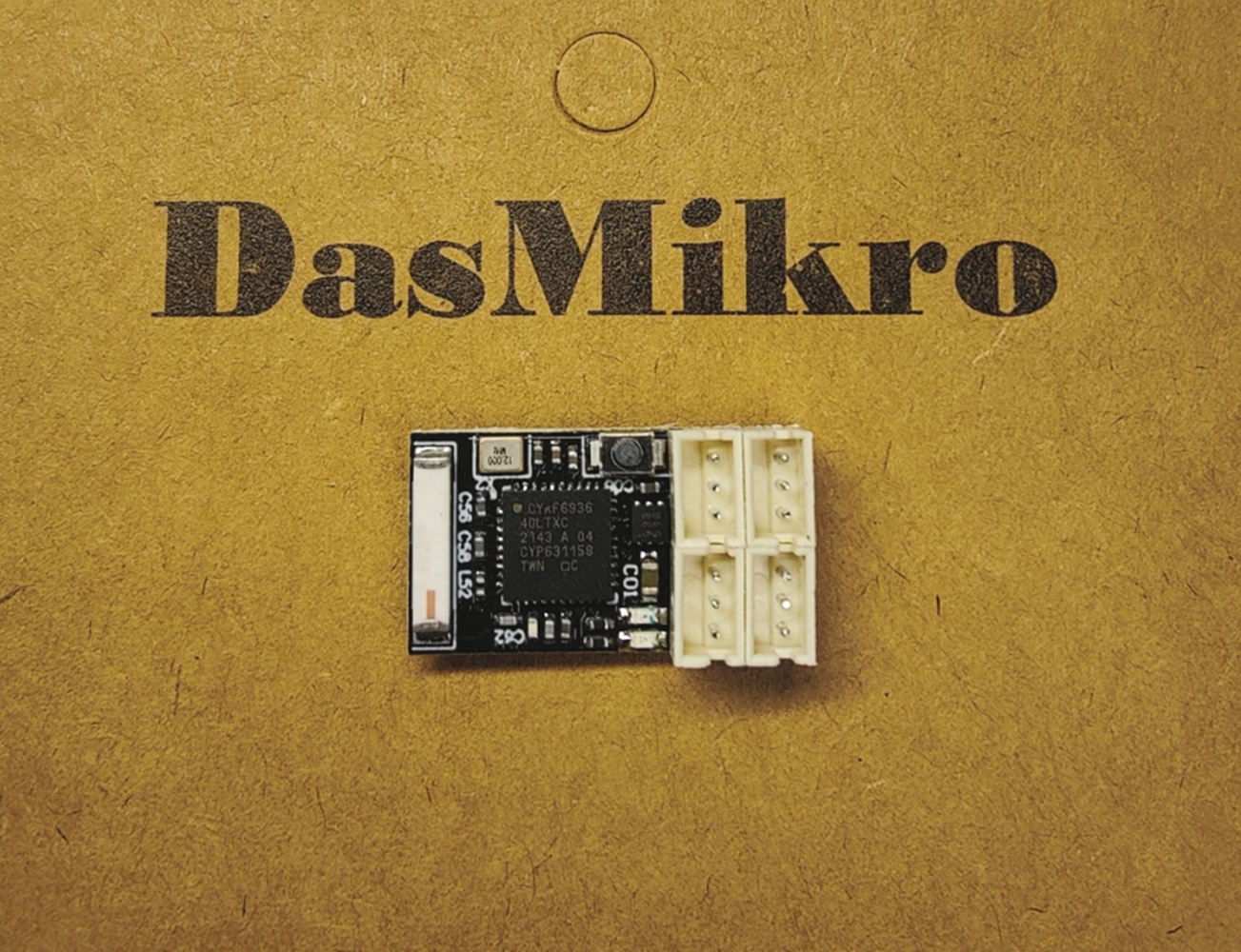

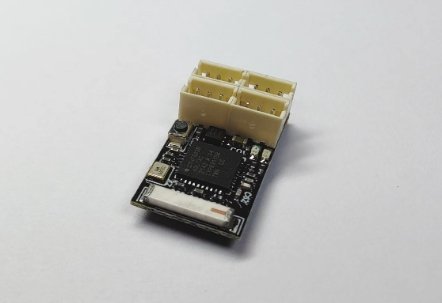

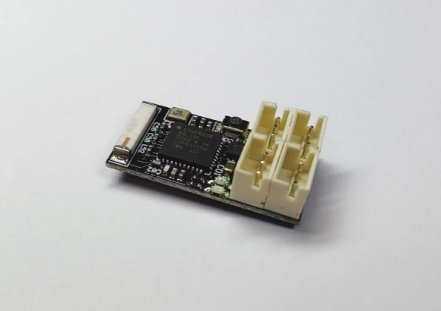

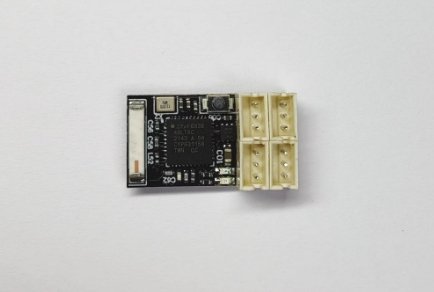

DASMIKRO KOPROPO FHSS NANO ANTENNA-FREE 4CH RECEIVER DSK-159

Description:

This receiver unit is KO PROPO high speed FHSS compatible

Features:

1. KO PROPO 2.4GHz FHSS conpatible
2. High performance CPU enhance precision control feeling
3. 4 channel support

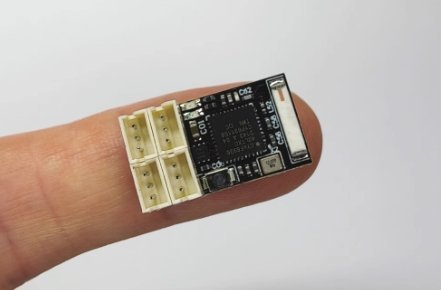

4. Micro size (23mm x 12mm)
5. Added failsafe function
6. Operating Voltage 3.5V – 8.4V:
7. Weight: 2g

Compatible Transmitters:

KO PROPO EX-LDT

KO PROPO EX-2 ST2

KO PROPO EX-RR ST2

KO PROPO EX-RR

KO PROPO EX-2

KO PROPO EX-1 FHSS

KO PROPO KR-903FH/KR-904FH

KO PROPO ESPRIT4

Package Included:

1 x Receiver

2 x 1.5mm 3P JST plug with cable

Binding procedure:

Step1. Select FHSS protocol on transmitter and switch to bind page.

Step2. Press setup(bind) button then power on the receiver, after powered on release setup(bind) button. The receiver should enter the binding mode for 10 seconds(the led will slowly flash for 10 seconds).

Step3. Operate ‘bind’ operation on transmitter while the receiver led is slowly flashing.

Step4. If you did not make the ‘bind’ operation on transmitter in 10 seconds(receiver led slowly flashing), go back to Setp2 and do it again.

Step5. After binding please power off the receiver and transmitter then power them on to confirm they are bond.
