Spektrum 2.4GHz SR3100 DSM2 3.5–9.6V 3-Channel Surface Receiver

Overview

The SR3100 receiver is specifically designed to take full advantage of the advanced DSM2® spread spectrum protocol that the Spektrum brand uses in the DX3R racing system. This means it will provide the fastest response of any spread spectrum receiver, in addition to glitch-free performance. And it gives you all these advantages in a package that is small enough to fit on a 1/18-scale chassis with ease.

Always purchase products from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM2 or Spektrum products.

Attention: Horizon Hobby has confirmed that all Spektrum Products being sold by KoKo Technology are counterfeit. We consider it a danger to use these products, waive all liability and will not support any warranty or service in regards to them.

Specifications:

100% Brand new and high qulity

Type: Race receiver

Material: Plastic

Number of Channels: 3

Modulation: DSM2

Band: 2.4GHz

Size: As the picture show

Voltage Range: 3.5–9.6V

BIND:

With the receiver off, insert the Bind plug into the Batt/Bind port in the receiver.

Power the receiver. The amber LED will flash continuously, indicating the receiver is in Bind mode.

Turn on the transmitter and make sure the transmitter shows the desired model number that you intend to use.

Press the rolling selector to access the List screen.

Rotate the roller to highlight the Bind screen and press the roller to access this screen.

Rotate the roller to highlight BIND.

With the steering wheel, throttle stick and Aux channel (if applicable) in the desired preset failsafe positions, press the roller to initiate the bind process and to store the failsafe positions.

BIND will flash for a few seconds, then the transmitter will beep indicating the process is complete.

The LED on the receiver should now be solid indicating a successful bind has taken place.

Remove the bind plug and store it in a convenient place.

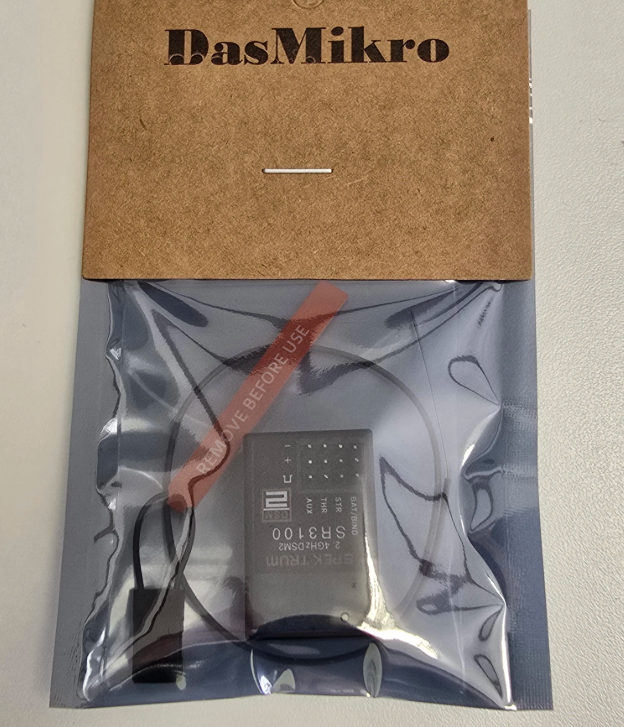

Package includes:

1x DSM2 SR3100 Compatible 3CH Surface Receiver

1x Bind Plug
