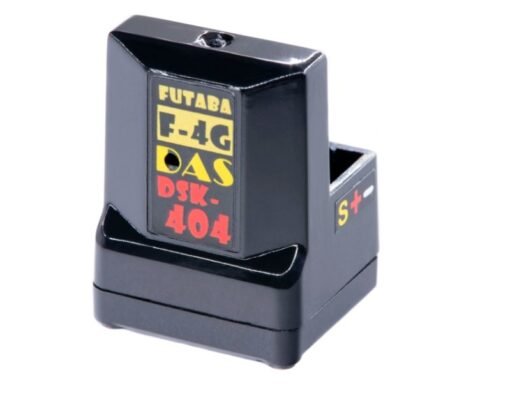

DASMIKRO FUTABA F-4G SUPER RESPONSE ANTENNA FREE 4CH RECEIVER DSK-404N FUTABA 10PX

Description

DASMIKRO FUTABA F-4G SUPER RESPONSE ANTENNA FREE 4CH RECEIVER DSK-404N FUTABA 10PX

Description:

This receiver unit is FUTABA F-4G compatible. F-4G is the mode that boasts the fastest response in the Futaba car system. You can find detail information in below official link: https://futabausa.com/futaba-rc-tech/surface-radio-communication-systems/

Features:

1. Futaba F-4G system compatible

2. High performance CPU enhance precision control feeling

3. PWM 4-channel support, S.BUS2 10-channel receiver

4. Operating Voltage 3.7V – 7.4V

5. F/S and Battery F/S function: It is set according to the transmitter used.

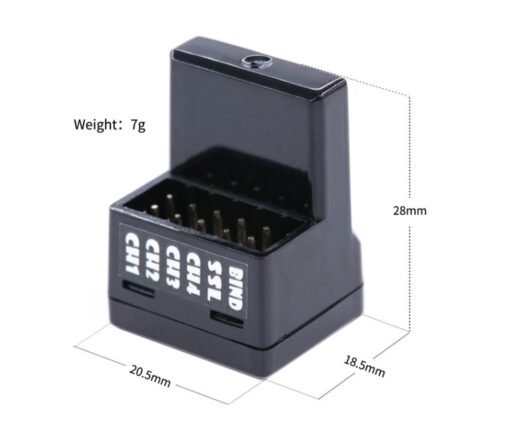

6. Micro size (Antenna-Free: 28×20.5×18.5mm)

7. Weight: 5g

Compatible Transmitters:

Futaba 10PX

Link Procedure:

Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.

1- Place the transmitter and the receiver close to each other within half (0.5) meter.

2- Place the transmitter into the linking mode and turn on the receiver without the bind cable.

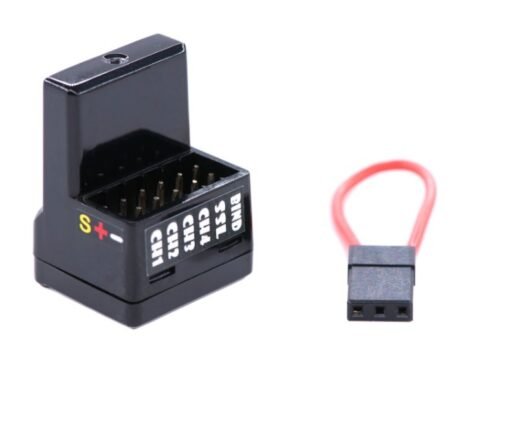

3- Plug in the bind cable to receiver bind slot, wait 2 to 3 seconds and then plug out the bind cable.

4- The LED will begin to blink red. After the receiver LED switches from blinking red to green – red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was successful.

*Please refer to the table for LED status and receiver condition.

* Refer to user manual of the transmitter, to change your transmitter in “Link” mode.

* If there are many F-4G systems turned on in close proximity, your receiver might have difficulty establishing a link to your transmitter. This is a rare occurrence. However, should another F-4G transmitter/receiver be linking at the same time, your receiver could link to the wrong transmitter. This is very dangerous if you do not notice this situation. In order to avoid the problem, we strongly recommend you double check whether your receiver is really under control by your transmitter.
