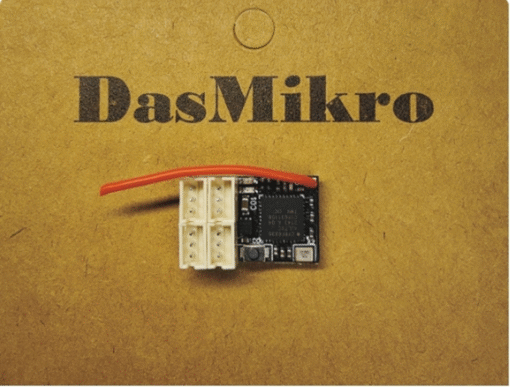

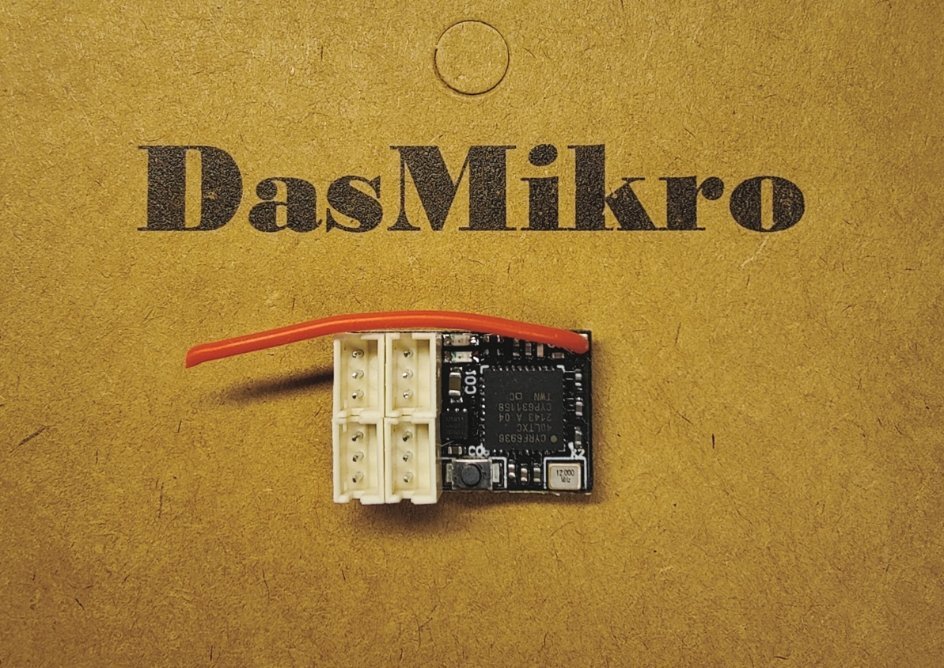

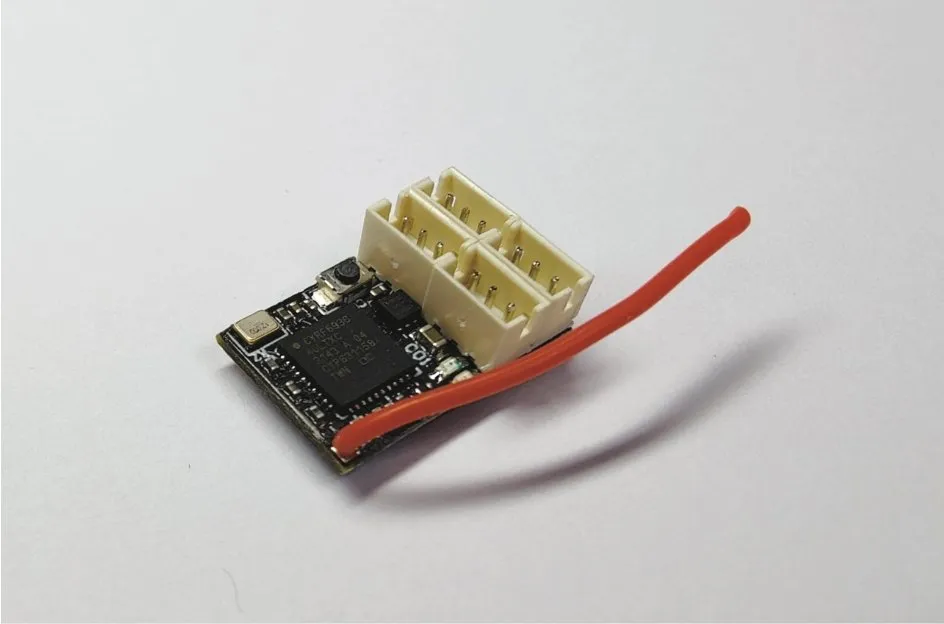

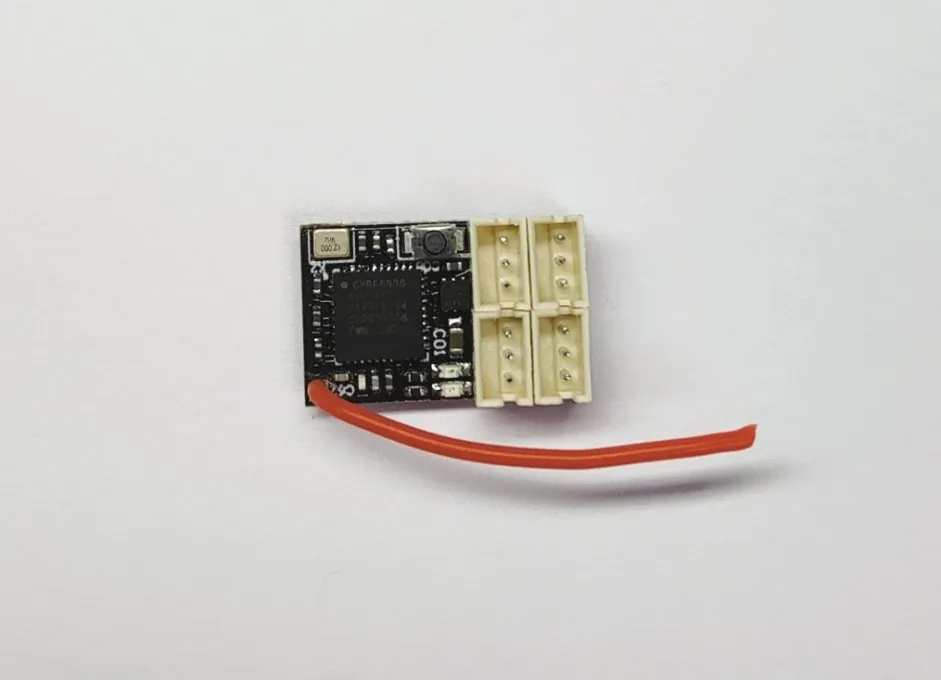

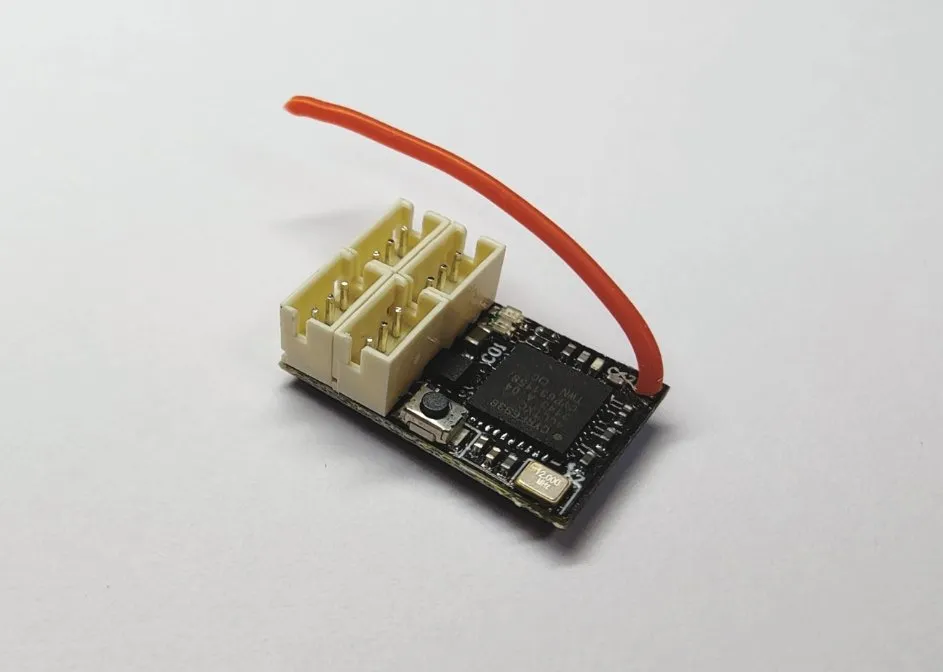

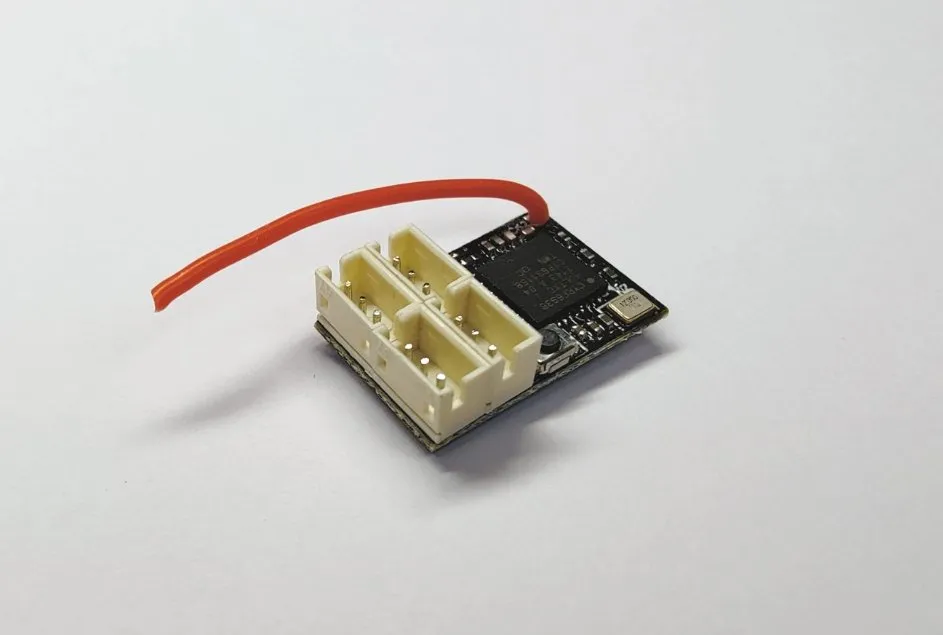

DASMIKRO SANWA NANO 4CH RECEIVER FH-4 FH-3 DSK-301

Description

Description:

This receiver unit is Sanwa high speed FHSS-4 and FHSS-3 compatible

Features:

1. Sanwa 2.4GHz FH3/FH4 Selectable Via Transmitter
2. High performance CPU enhance precision control feeling
3. 4 channel support

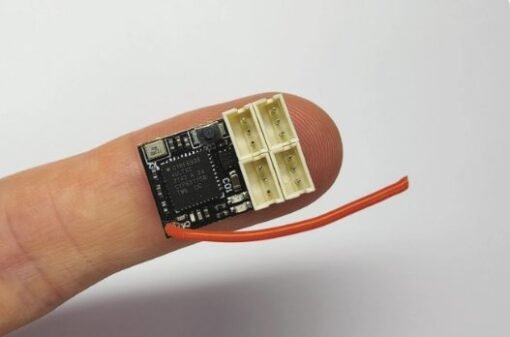

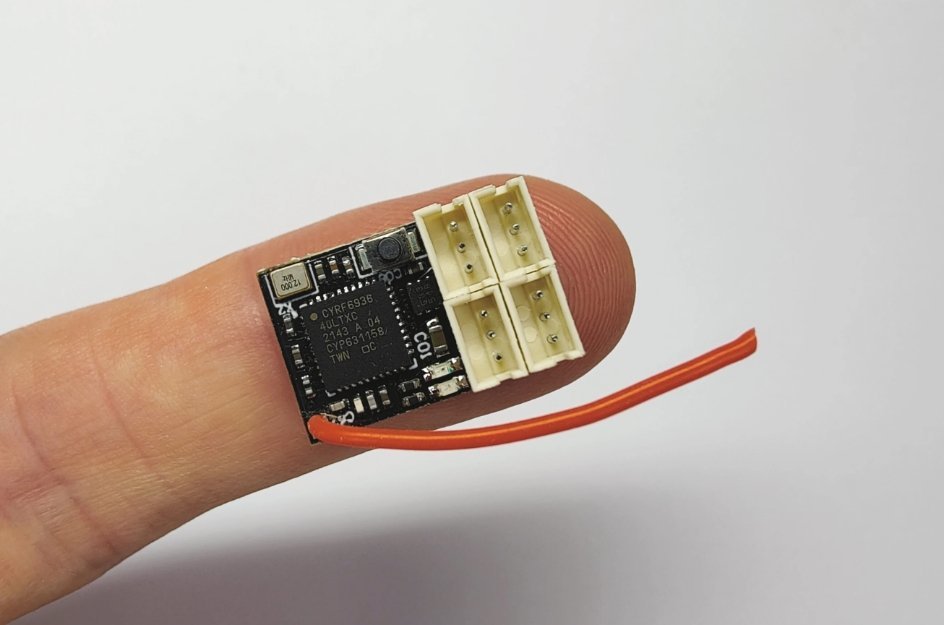

4. Micro size (19mm x 12mm)
5. Added failsafe function
6. Operating Voltage 3.5V – 8.4V:
7. Weight: 2g
8. Battery Voltage Fail-Safe Limit: 3.5-5.0V (FH3) / 3.5-7.4V (FH4)

Compatible Transmitters:

Sanwa M17

Sanwa M12S

Sanwa M12

Sanwa MT44

Sanwa MT4S

Sanwa MT4

Sanwa M11X

Package Included:

1 x Receiver

2 x 1.5mm 3P JST plug with cable

Binding procedure:

Step1. Select FH-4 or FH-3 protocol on transmitter and switch to bind page.

Step2. Press setup(bind) button then power on the receiver, after powered on release setup(bind) button. The receiver should enter the binding mode for 10 seconds(the led will slowly flash for 10 seconds).

Step3. Operate ‘bind’ operation on transmitter while the receiver led is slowly flashing.

Step4. If you did not make the ‘bind’ operation on transmitter in 10 seconds(receiver led slowly flashing), go back to Setp2 and do it again.

Step5. After binding please power off the receiver and transmitter then power them on to confirm they are bond.
